On-premises
Last updated
Last updated
Exivity can be installed in your on-premises data center using the provided installer. You can automatically deploy it using the silent installation command-line options or execute it as an interactive installer.
To install Exivity, you'll need the following:
A system that complies with the Exivity minimal system requirements
The Exivity software installation executable
A valid Exivity license key
If you need help meeting one or more of the above requirements, please get in contact with our support department.
To install Exivity interactively, execute the provided setup executable. Then follow the instructions depending on your intended architecture:
Silent installation is only recommended for experienced users requiring automated deployments
To execute a silent installation the following command line parameters are supported:
<setup>.exe /S
<setup>.exe /S /EXIVITY_PROGRAM_PATH="C:\Program Files\Exivity\program" /EXIVITY_HOME_PATH=D:\Exivity\home /ADMIN_USER=master /ADMIN_PASSWORD=P@ssword
Updating your installation of Exivity to a more recent minor and/or bugfix release (i.e. 3.x.x --> 3.x.x) is straightforward and may be done by installing the new version over the top of the old.
Execute the setup executable. It will detect the installed version of Exivity, and will automatically upgrade when you click Next
When executing <setup>.exe /S
, your existing installation will be automatically upgraded.
When upgrading to a more recent major version (i.e. 2.10.2 --> 3.x.x) consult first the release notes to verify any breaking changes that may apply to your installation.
Exivity comes as standard with an untrusted self-signed SSL certificate. It is therefore highly recommended to replace the default certificate with an official one, signed by your Certificate Authority. To install a signed certificate, follow this procedure:
Download the 32 bit version of openssl.exe from https://slproweb.com/products/Win32OpenSSL.html, and install this tool on the Exivity server
Use the openssl.exe executable to generate a valid key file on the Exivity server by executing the following command:
Run the following command to create a certificate signing request file:
Replace example.com
in the command above with the FQDN of the Exivity server.
You will be asked to enter general information like company name, city, etc. It is important to include the FQDN of the Exivity server when asked for Common Name (e.g. server FQDN or YOUR name) []:
NOTE: when asked, it is required to not provide a password (leave this field empty and press return), otherwise the Exivity application will not be able to use your certificate.
The generated CSR file should be sent to your Certificate Authority. After processing by your CA, you should receive back a .crt file. Rename this file to webcertificate.crt and rename your exivity.key to webcertificate.key and copy it to the directory %EXIVITY_PROGRAM_PATH%\server\nginx\conf
. This should overwrite the existing .key and .crt files.
Restart the Exivity Web Service
Windows service to activate your signed certificate.

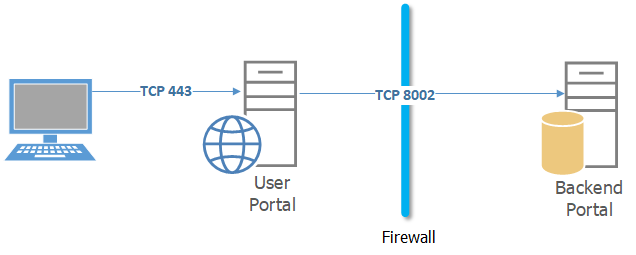

In some environments it may be desirable to separate the webserver from the backend components. This can be achieved by installing two separate Exivity instances. One instance could be placed in a DMZ and the second instance would then typically be deployed within a local network as shown in the following diagram:
To achieve this, first install Exivity on the backend node using the standard procedure described here. Afterwards install the Exivity software on the system that should become the User Portal and only install the Web Component. When asked, specify the API Backend hostname and port to finalize the installation.
Make sure to replace HOSTNAME_BACKEND_PORTAL
with the actual hostname or IP address of the system that serves as your Exivity Backend Portal.
When using SAML2 as an authentication mechanism for Single Sign On, and users also connect to a User Portal, take special attention to theX-Forwarded-Host
and X-Forwarded-Port
in the Nginx webproxy.conf. These are required when the User Portal is served on a different port (i.e. 443) compared to the backend portal API (i.e. 8002). When this is the case, the forwarded port needs to match the port number of the user portal.
After completing your installation, you should now be able to access your Exivity User Portal.
In cases where Exivity instance requires internet connectivity (i.e. to obtain Azure or AWS consumption data), and your network infrastructure requires use of a proxy server, it is necessary to configure a system environment variable.

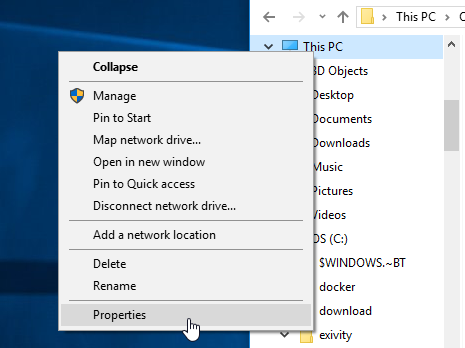

Right click on This PC in an Explorer Window and click on Properties:

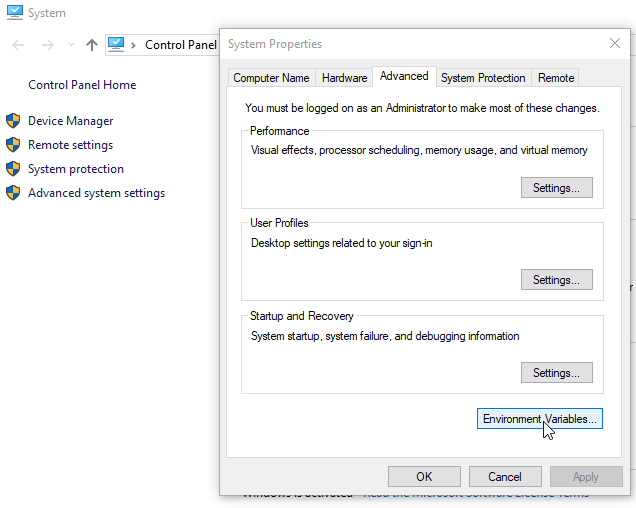

Then go to Advanced System Settings, then click the Environment Variables button:

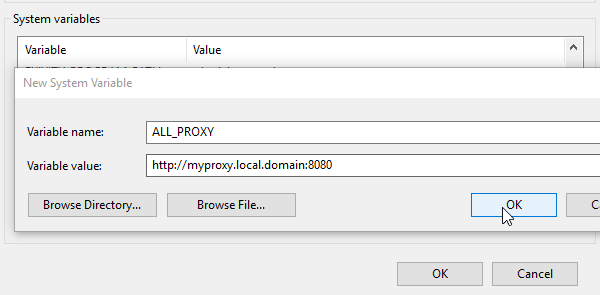

Now add a new System Variable with the name ALL_PROXY and fill in the address of your proxy server as the value for this variable:

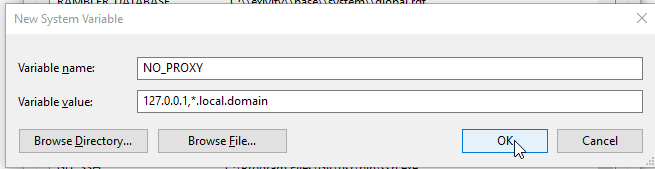

In case you do not want to use the proxy for certain address or domains, it is also possible to add an additional variable NO_PROXY:
If the name in the noproxy list has a leading period, it is a domain match against the provided host name. This way ".example.com" will switch off proxy use for both "www.example.com" as well as for "foo.example.com".
After confirming the change, make sure to restart both the Exivity Windows Services.
By default, Exivity API has a limit of 2048kb for filesize uploading, should you require to increase it, please modify the file located in %EXIVITY_PROGRAM_PATH%\server\php\php.ini
Adjust the variables post_max_size and upload_max_filesize to your desired value.
In order to generate PDF documents through the Exivity API, the Chrome browser needs to be installed and the directory where chrome.exe
can be found should be made available in the systems Path
environmental variable. Read how to add a directory to the Path environmental variable.
Depending on your installation method chrome.exe
should be installed in one of those directories:
C:\Program Files\Google\Chrome\Application
C:\Users\{username}\AppData\Local\Google\Chrome\Application
To prevent server overload, generating PDF reports through the API is limited to take 1 minute. Very large reports (e.g. consolidated reports with instance details) may take more time and result in an API error. If that's the case, try generating reports for single accounts or without instance details.
Restart the Exivity API service after making these changes.
Parameter
Description
Default
/EXIVITY_PROGRAM_PATH
Path to Exivity program files
C:\Exivity\program
/EXIVITY_HOME_PATH
Path to Exivity home files
C:\Exiivty\home
/ADMIN_USER
Exivity admin user
admin
/ADMIN_PASSWORD
Exivity admin password
exivity
/PGUSER
PostgreSQL user
postgres
/PGPASSWORD
PostgreSQL password
randomized
/PGHOST
Hostname for PostgreSQL server
localhost
/PGPORT
Port of PostgreSQL server
5432
/PGSSLMODE
Disable or require PostgreSQL SSL communication
disable
/PGDATABASE
Exivity database on PostgreSQL server
exdb
/PGDATA
Location of PostgreSQL data files (only used when installing local database instance)
<exivity_home>\system\pgdata
/PSQL_INSTALLED
1 (install locally) or 0 (do not install)
1
/PROXIMITYHOST
Remote API hostname (required when installing Web component only)
localhost
/PROXIMITYPORT
Remote API port (required when installing Web component only)
8002
/API_INSTALLED
1 (install locally) or 0 (do not install)
1
/SCHEDULER_INSTALLED
1 (install locally) or 0 (do not install)
1
/BACKEND_INSTALLED
1 (install locally) or 0 (do not install)
1
/JOBMAN_INSTALLED
1 (install locally) or 0 (do not install)
1
/MQ_INSTALLED
1 (install locally) or 0 (do not install)
1
/MQHOST
RabbitMQ hostname
localhost
/MQPORT
RabbitMQ port number
5672
/MQSSL
MQ SSL/TLS enabled (1) or disabled (0)
0
/MQUSER
RabbitMQ user account
guest
/MQPASSWORD
RabbitMQ password
guest
/MQVHOST
RabbitMQ virtual host
/
